\(QS10_{11}^{(1)}\)
Description

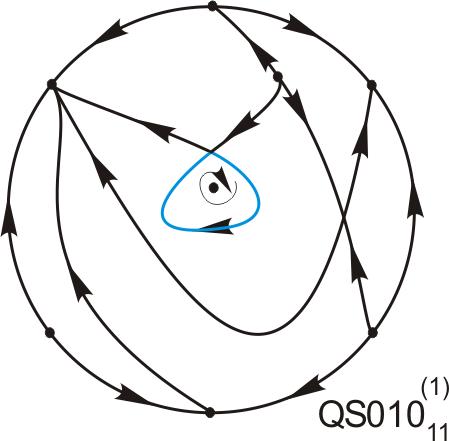

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(10\) | \(4430\) | \(311110\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = y+a \, x^{2}+b \, x \, y \\ \dot{y} = x^{2}+2 \, c \, x \, y+(c^{2}-1) \, y^{2}+d+e \, x \end{cases}\]
with parameters: \(a = \frac{1}{2}, \quad b = 0, \quad c = \frac{1}{2}, \quad d = -0.0000001, \quad e = -0.0007\)

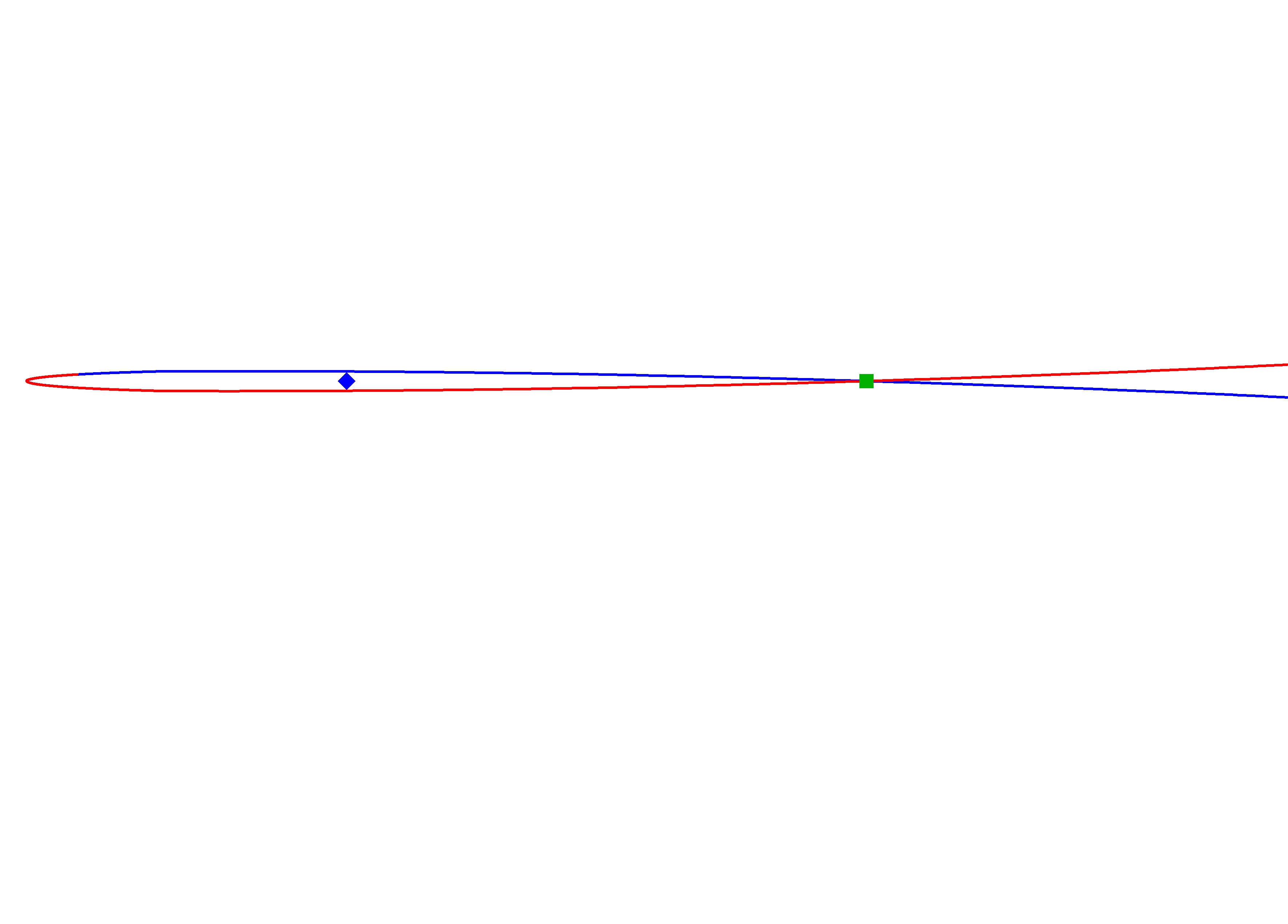

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(Fig. 34\) in {J. Llibre and C. Pantazi}, Global phase portraits of the quadratic systems having a singular and irreducible invariant curve of degree 3. Internat. J. Bifur. Chaos Appl. Sci. Engrg. 33 (2023), no. 1, Paper No. 2350003, 54 pp.
- With name \(U^1_{D50}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS10_{3}^{(0)}\) and \(QS10_{10}^{(0)}\).
